The Cap Jewel (bottom)
Reference no 332
|
|
The Cap Jewel (bottom) Reference no 332 |
|
|
|
|

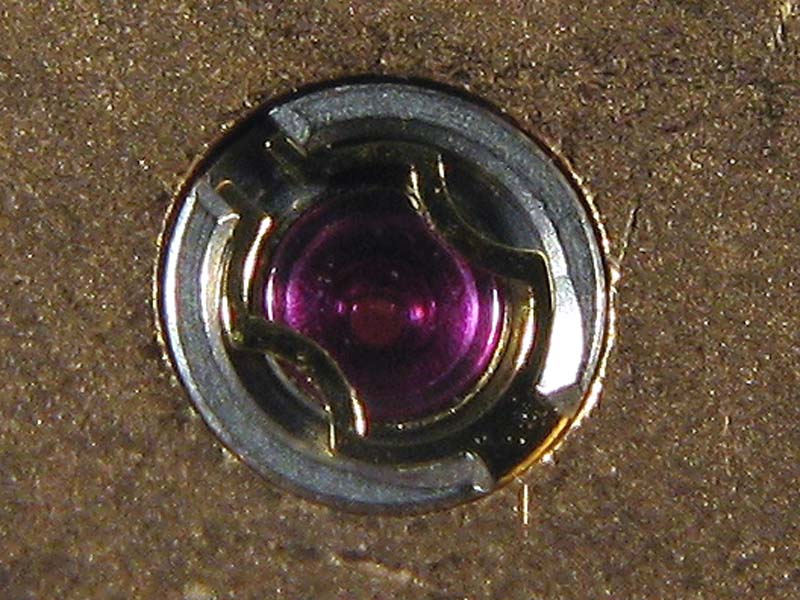

This figure shows the Cap Jewel
(315) that
locks the balance pivot in the axial direction. It is sometimes called end-stone. The cap jewel is often part of
a shock-protection system as in the picture above.
|
|
|
|
|

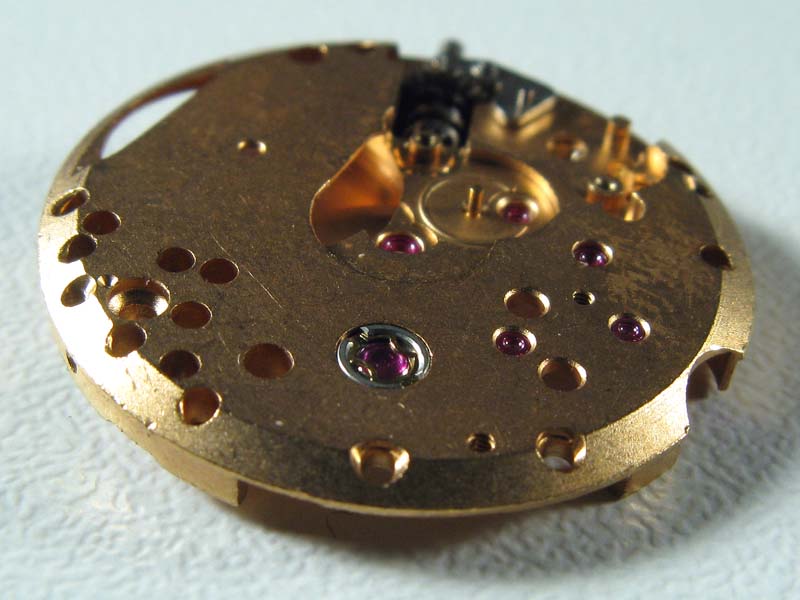

| In this figure the Cap Jewel can be seen in place at the bottom side of the Main Plate. |
