The Balance Cock
Reference no 121
In the figure above all the Bridges and Cocks are put into their positions at the Main Plate.
|
|
The Balance Cock Reference no 121
|
|
|
|
|

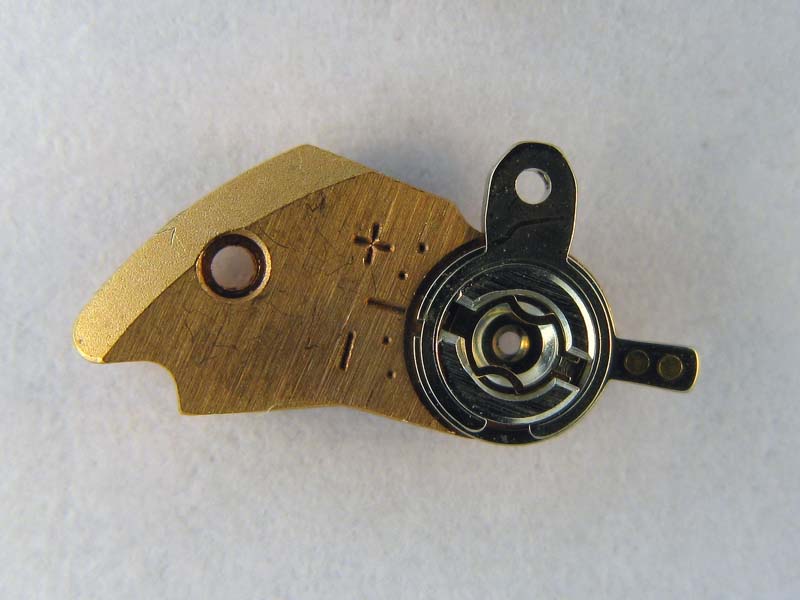

The Balance Cock (121) holds the Balance in
place and is screwed into the Main Plate (100). The picture shows the Balance Cock
without the end stone jewel.
|
|
|
|
|
|
In the figure above the Main Plate can be
seen in the center. To the upper right is the Pallet Lever Cock and to
the lower right is the Balance Cock. The Barrel Bridge can be seen up
left and down right is the Wheel Train Bridge.
|
|
|
|
|
|
In the figure above all the Bridges and Cocks are put into their positions at the Main Plate. |
|
|
|
|
